Fluidized bed dryer TYPICAL3

rotary drumbatchlaboratory

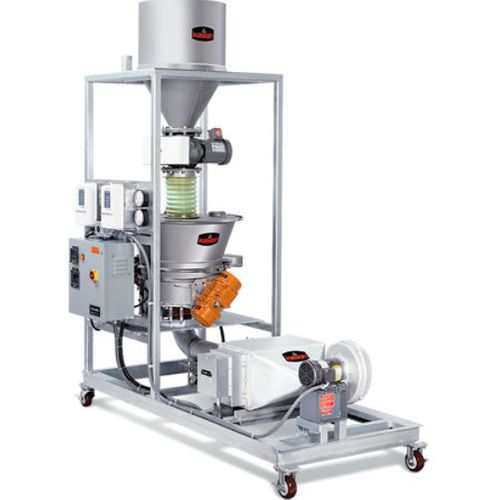

Laboratory Batch Dryer This pilot-plant-scale drying system incorporates a surge bin, rotary valve, 24" (610 mm) diameter fluid bed processor, heater, blower, and controls on a caster-mounted frame. Processors as small as 18" (460 mm) in diameter are offered for laboratory applications. Standard Equipment: Controls for inlet temperature, air velocity, bed depth, and retention time Quick-disconnect clamps for fast, thorough cleaning Choice of fluid bed air distributor High Torque motor drive with double extension shaft and eccentric weight adjustment system to optimize vibratory motion for specific materials Continuous or batch operation 304 Stainless steel contact surfaces Adjustable weir to control bed depth Optional Equipment: Construction to 3-A, FDA, and BISSC standards Clean-in-place spray heads Explosion proof electricals for hazardous applications 316 or higher grade stainless steel material contact surfaces
