Chevron seal K151 seriescircularrubberNBR
Add to favorites
Compare this product
Characteristics
- Type
- chevron
- Configuration
- circular
- Material
- rubber, NBR, PTFE, thermoplastic
- Other characteristics
- hydraulic, single-acting
- Temperature limit
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Pressure limit
Max.: 250 bar
(3,625.9 psi)Min.: 0 bar
(0 psi)- Diameter
Max.: 28 mm
(1.102 in)Min.: 14 mm
(0.551 in)- Outer diameter
Max.: 38 mm
(1.496 in)Min.: 25 mm
(0.984 in)- Speed
2 m/s
(6.6 ft/s)
Description

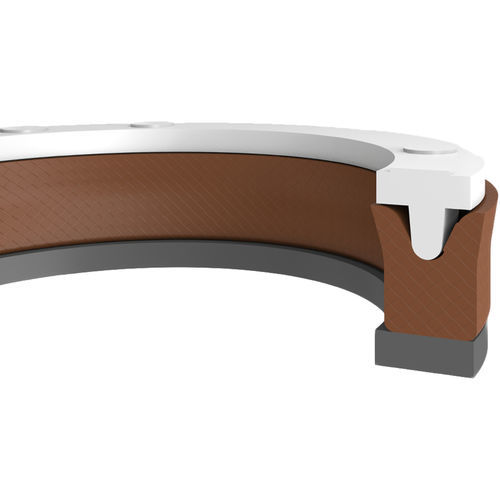

K151 high pressure sealing sets are three pieces rod sealing elements consisting of water resistant fabric elastomer chevron ring, backup ring and head adapter for pressure washers. * The product in the visual belongs to K151 consists of a chevron ring and front adapter. K151B SKU`s has an additional back-up ring.
Advantages
• High speeds
• Water compatibility and low swelling
• Long service life
• Adjustable housing
Area of Application
• Pressure washers
