Hydraulic winch HSW-B

compact

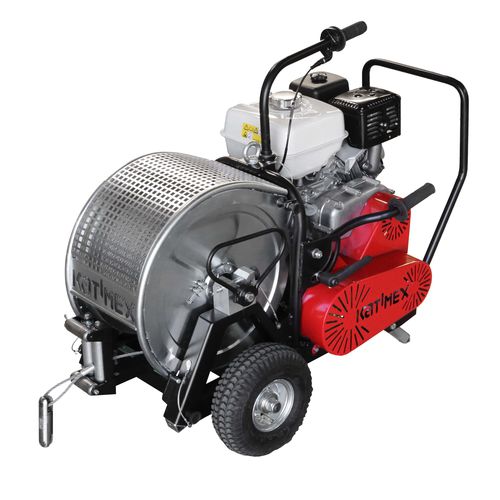

Support winch - HSW-B The support winches of the HSW-B series are ideally to pull heavy winch ropes from larger hydraulic cable winches into conduits or cable trays. Also light energy cables can be pulled over long distances. The HSW-B winches are the ideal addition to lager and stronger hydraulic winches and complete the equipment for cable pulling. The winches work with steel ropes Ø 4 - 6 mm; the drum can hold 1100 m of the 4 mm rope, 700 m of the 5 mm rope and 500 m of the 6 mm rope. Due to the free-wheeling function of the drum, a 4 mm steel rope can easily be blown into empty tubes by air pressure. Strong pulling force and a compact and mobile design are further key features to underline the wide versatility in various fields. Key features: • High quality gasoline engine from a top manufacturer • Quick release for V-Belt • Removable, free-wheeling drum • Adjustable supports • Comfortable rope-guide • Drum cover
