Underground cable fault detector .

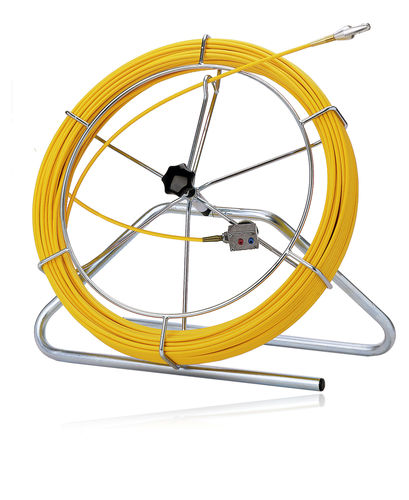

To repair and recondition pipes and cables underground can be a costly, time consuming operation. Any company undertaking an underground engineering contract needs to ensure that the routing of any shaft can be quickly and safely identified. Finding non-conductive pipes is significantly simplified and often, for the first time, made feasible by using the KATIMEX® locating systems. At the centre of the unit is the Polykat® fibreglass profile. The Polykat® fibreglass profile contains one or more copper wires that emit a locatable signal over the entire band length via the connection of a high frequency transmitter. The signal emitted can be picked up to a depth of several meters dependant on the receiving equipment fitted and the local conditions. Jet with Sonde System Locating Device for Point and Route Locating Polykat® fibreglass profile Ø 7.4 mm with integrated copper wires sonde for end point determination, connection box with socket and pins for two connections, galvanized steel frame and reel Ø 650 mm Cablejet 2in1: concept: cable pulling device with detection function Polykat® fibreglass profile Ø 7.4 mm with integrated copper wires fitted with rod end with external M12 and screwed-on guide head Ø 18 mm connection box for connecting transmitter (1 connection) galvanized steel frame with reel Ø 650 mm
