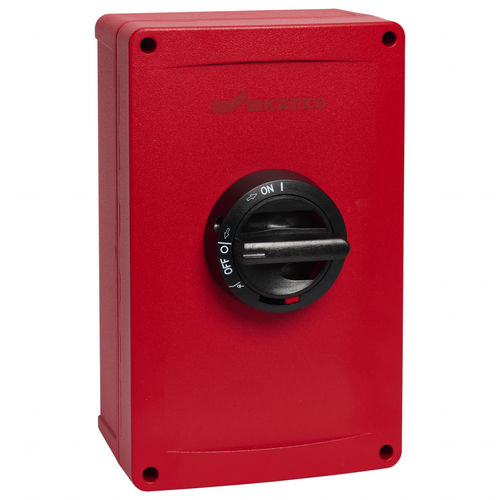

Low-voltage disconnect switch KEA 380 FR1V A4

3-poleACenclosed

• F200 3H (FR) / F300 2H (FR3) • FR designed to conform to F200 class of EN 12101-3 smoke and heat standard, 200°C for 3 hours • FR3 designed to conform to F300 class of EN 12101-3 smoke and heat standard, 300°C for 2 hours • IP66 • Padlockable • Door interlock with defeat mechanism • ON-locking facility as option • Good corrosion and UV resistance • Excellent for hard weather conditions • Tested according to IEC 60947-3 Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size - 2.5-35 Color - Standard Enclosure - A4 Enclosure Type - Firerated Aluminium IP Rating - 66 Operation - Front-operated Switch type - Load Break Switch Weight (kg) - 2
