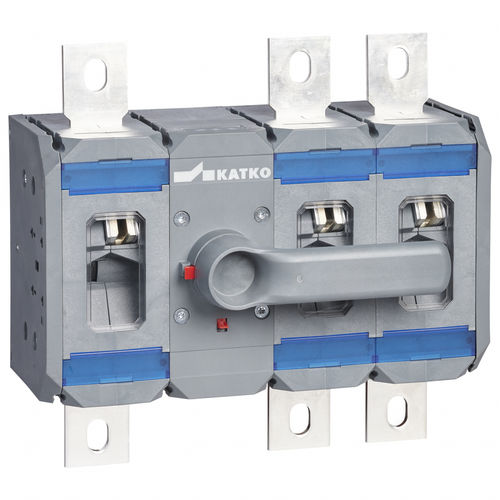

AC load-break switch KU 3630 SV

low-voltagerotary3-pole

• Made of halogen-free thermoplastic material. Materials have 100 % recyclability. • Option for test position for testing auxiliary contacts while main contacts remain open. Note, only available on request. • Reliable switch for demanding industrial applications • Change-over switches: ‘CO’ included in type name • Change-over switches with direct handle: ‘CO SV’ included in type name • Change-over switches are always delivered with bridging bars • Types without ‘SV’: Delivered with separate handle (LKX 150) and shaft (LVK=228) • Available with yellow/red handle (LKX 150 Y/R) and a shaft of different length (100mm-500mm) on demand • Types with ‘SV’: delivered with direct handle • 800 A switch: AC-23 1000V 400 A • Icw 690V (1s) 28kA • R.M.S value 100kA • Auxiliary contacts available (1.V160KU or 2.V160KU), up to 8 NC / 8 NO • Terminal covers and phase barriers (VS800) available Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size - M12 E-Number - 3602883 Operation - Rotary, with direct handle Weight (kg) - 4.545
