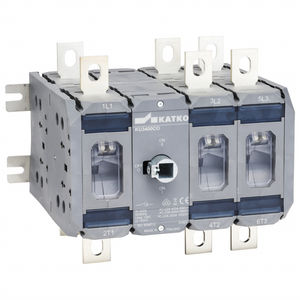

Manual changeover switch KU 4250WCO SV

4-pole

• Made of halogen-free thermoplastic material. Materials have 100 % recyclability. • Option for test position for testing auxiliary contacts while main contacts remain open. Note, only available on request. • Reliable switch for demanding industrial applications • Change-over switches: ‘CO’ included in type name • Change-over switches with direct handle: ‘CO SV’ included in type name • Change-over switches are always delivered with bridging bars • Types without ‘SV’: Delivered with separate handle (LKX 100) and shaft (L=200 AD12/T6) Available with yellow/red handle (LKX 100 Y/R) and a shaft of different length (100mm-500mm) on demand • Types with ‘SV’: delivered with direct handle • 250 A switch: AC-23 1000V 135 A • Icw 690V (1s) 8kA • R.M.S value 100 kA • Auxiliary contacts available (1.V160KU or 2.V160KU), up to 8 NC / 8 NO • Terminal covers (LS250H and LS250F) and phase barriers (VS250) available Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size - M8 E-Number - 3609215 Operation - Front-operated Weight (kg) - 2.6
