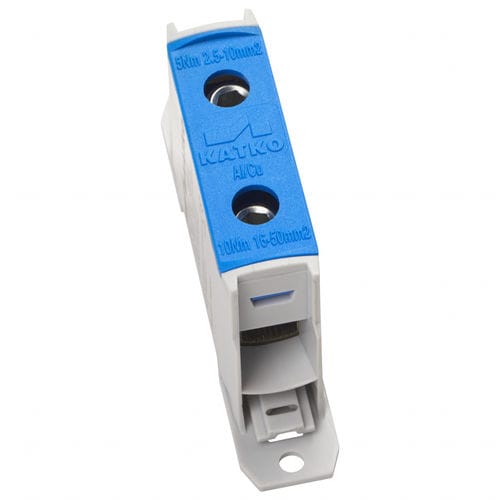

DIN rail-mounted terminal block KL1X50Nscrew connection
Add to favorites
Compare this product
Characteristics
- Mounting
- DIN rail-mounted
- Connection
- screw connection
- Cross-section
Max.: 5 mm²
(0.01 in²)Min.: 2.5 mm²
(0 in²)- Current
160 A
- Nominal voltage
1,000 V
Description
• UL listed connector
• Sales unit = 1 piece
• Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
• Available in grey, blue (N) and yellow/green (PE)
• Touchproof, IP20
• Housing and cover in polyamide
• Terminal material KL tin-coated, greased aluminium
• Environmentally friendly materials
• Durable laser markings
Al mm² - 2,5 - 50
Color - N
E-Number - 1942062
Key size - Hex 5
Number of Conductors - 2
Package size - 32
Torque Al/Cu (Nm) - 5 (2,5 - 16 mm²) / 10 (25 - 50 mm²)
Un (V) - 1000
Weight (lb/kg) - 0.132 / 0.06
