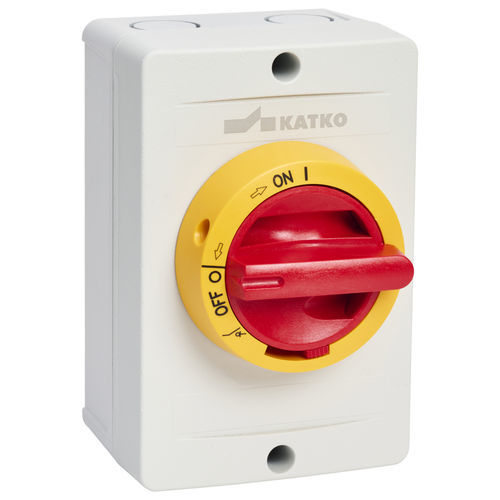

Low-voltage disconnect switch KEA 316UL YR A23-poleACenclosed
Add to favorites
Compare this product
Characteristics
- Voltage level
- low-voltage
- Number of poles
- 3-pole
- Electrical characteristics
- AC
- Construction
- enclosed
- Primary current
16 A
- VAC
208 V, 415 V, 480 V, 600 V
Description

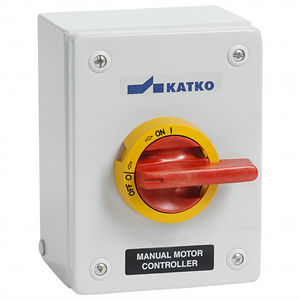

• Manual motor controller with disconnector means
• Type 4 enclosure
• Across the line, motor starting-up to 75HP/600V
• General use rating from 16A to 125A/600V, refer to detailed product specifications
• Retrofit snap on auxiliary contacts
• Padlockable with three locks
Color - Yellow / Red
Enclosure - A2
NEMA Rating - 4
Weight (lb/kg) - 1.764 / 0.8
Wire Size (Cu Only) - 14-8AWG
