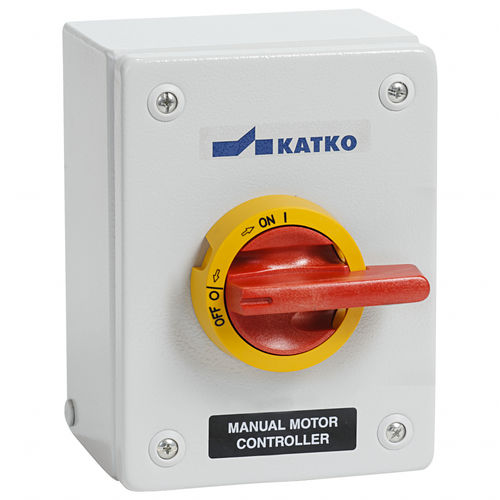

Low-voltage disconnect switch KET 440UL YR T33-poleenclosed
Add to favorites
Compare this product
Characteristics
- Voltage level
- low-voltage
- Number of poles
- 3-pole
- Construction
- enclosed
- Primary current
40 A
- VAC
208 V, 415 V, 480 V, 600 V
Description
• Type 4 enclosure
• Across the line motor starting up to 75 HP/600 V
• General use rating from 16 A to 150 A/600 V, refer to detailed product specifications
• Retrofit snap-on auxiliary contacts
• Padlockable
Enclosure - T3
HP 208V - 7.5HP
HP 415V - 10HP
HP 480V - 20HP
HP 600V - 15HP
NEMA Rating - 4
Weight (lb/kg) - 4.851 / 2.2
Wire Size (Cu Only) - 14-8AWG
Catalogs
No catalogs are available for this product.
See all of KATKO‘s catalogs
