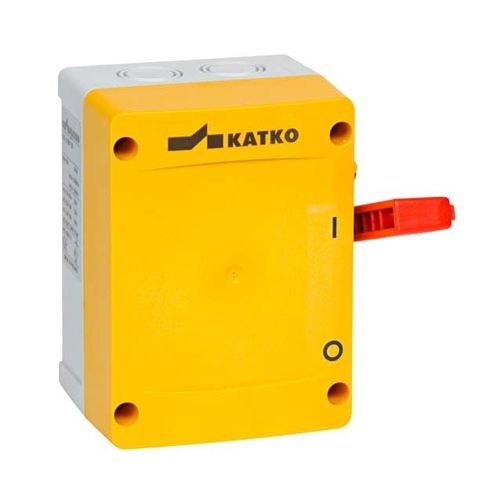

Low-voltage disconnect switch KE 440 MYR M2S 2XM25M

4-poleACenclosed

• Available in grey/black, yellow/red or fireman red • Good resistance against UV and many chemicals • Self-extinguishing material and excellent insulating properties • Fully rated Load Break Switch breaking capacity of 8 x AC23 rating • Cable entries 2 x M20/M25 as standard on the top and bottom and M20 on the base • Mounting holes: 118,0 x 84,0 • Padlockable handle in 0-position and also available in 1-position • Knock-out glands are easy to open • Large cable terminals 1,5 – 16 mm 2 • Tested according to IEC 60947-3 • KE = handle on right side • KEF = Fireman switch, handle on left side Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size - 1.5-16 Color - Yellow / Red Enclosure - M2S Enclosure Type - Polycarbonate IP Rating - 66 Operation - Side-operated Switch type - Load Break Switch Weight (kg) - 0.5
