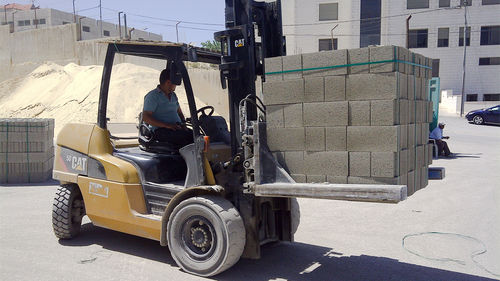

Concrete block handling clamp T412V

for forklift trucksfor curbstone

with independent sideshift – – 2 hydraulic functions KAUP Block Clamps T412V are best suited to pick up packets of upright format blocks with plane surfaces such as hollow, lime sand and concrete blocks as well as curb stones with high dimensional stability. The arms have a central swinging support to uniformly distribute the pressure and have flexible Vulcollan bars to compensate variations in dimensions of the load. Qualities: - Low lost load centre - excellent residual capacity - Very good visibility conditions - Independent sideshift serially - Load Backrest optionally • Also available without sideshift, model T402V • Variations in arm dimensions upon request. • Load Backrest see model T179. Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners). Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T. Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range. Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions. Attachment is available with cylinder and sideshifter protection.
