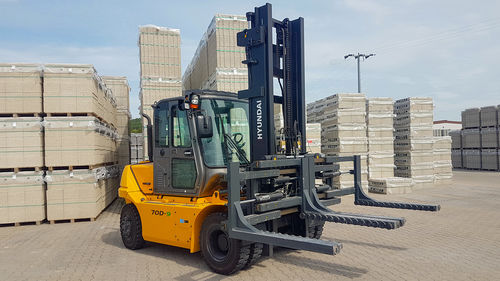

Concrete block handling clamp T412H

for brick

with independent sideshift – – 2 hydraulic functions KAUP Block and Brick Clamps T412H are used for handling small format blocks such as building bricks and paving stones. The grease filled clamping arms of this attachment have mechano-hydraulic equilibration pistons with different coatings. They adapt to irregular shaped loads and can therefore clamp the load as required. Steel plates for handling rough, hard, heavy concrete blocks, rubber coating for pick up of aerated concrete blocks and Vulcollan coating as an all-rounder are just some of the possibilities available. Qualities: - Low lost load centre - excellent residual capacity - Very good visibility conditions - Independent sideshift serially - Different kinds of equalising buffers on offer - Load Backrest optionally • HG = Rubber coating Ø 75, HV = Polyurethane coating Ø 75, HV-Q = Square Polyurethane buffers 75 x 75 mm, HS = steel disc Ø 65, HS-Q = Square steel buffers 80 x 80 mm • 1) Length G depends on the number of pistons ( ): available arm length 942 (11), 1.024 (12), 1.106 (13), 1.188 (14), 1.270 (15) • Also available without sideshift, model T402H • Load Backrest see model T179. Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners). Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T. Attachment is designed with toe-in on the tips which should be taken into account when choosing the opening range.
