Modular suspension system SENTOR

Modular suspension system - SENTOR  - KAYA YAPI IC MIMARLIK A.S.
Modular suspension system - SENTOR  - KAYA YAPI IC MIMARLIK A.S.
Modular suspension system - SENTOR  - KAYA YAPI IC MIMARLIK A.S. - image - 2
Add to favorites
Compare this product


Characteristics

Options
modular

Description

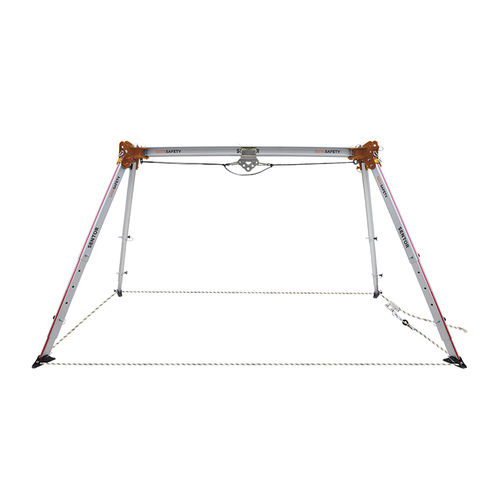

• SENTOR has multifunctional, modular and innovative design. The system is based on simplicity, lightness and robustness as theprinciple of development. • It is very easy to adapt to different workspaces (such as Rescue, Rope Access, Manhole, Silos etc.) • SENTOR can be constructed into many different configurations including;- Monopod- Twinpod- Tripod- Quadripod- Quadripod Bridge System • Tested and certified for the use of 2 people and 300 kg working and rescue load. • The system has a main head with unique design made from high-alloy aluminum material. Four legs can be attached and detacheddepending on the type of slots on this head. • The telescopic legs can easily be attached to the head with the help of a pin to achieve the desired structure. • Telescopic legs have anchor points in their heads. Thanks to these anchoring points, the system can be fixed at different points withthe help of rope. • The telescopic legs can be fastened and removed with the help of a single pin. If needed during use, the position of the roller canbe quickly mounted on the other legs. The pulley is made of stainless steel material. • There are two different slots on the pulley. These slots can be operated with rope systems up to Ø 13 mm and steel wire ropessystems with up to 8 mm. Standard: EN 795:2012 Type B & CEN TS 16415:2013 Type B
