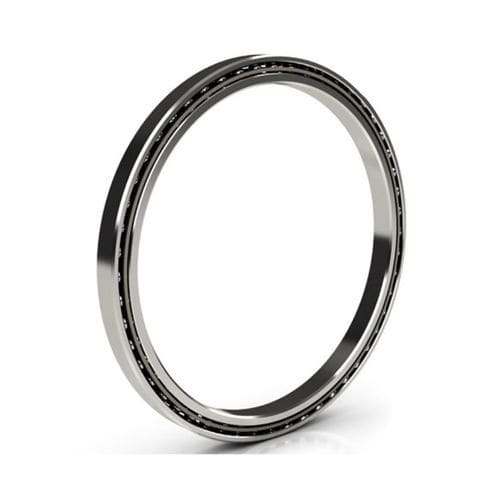

Ball bearing bearing Reali-Slim® KA deep groovethin-sectionangular-contact
Add to favorites
Compare this product
Characteristics
- Rolling element
- ball bearing
- Configuration
- deep groove, thin-section, angular-contact
- Material
- steel
- Other characteristics
- corrosion-resistant
- Inside diameter
Max.: 12 in
Min.: 2 in
- Outside diameter
Max.: 12.5 in
Min.: 2.8 in
- Width
0.25 in
Description
A deep groove bearing with reduced shoulder on one side of inner or outer race ball path. Snapover assembly permits use of a one-piece circular pocket ring separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact angle.
