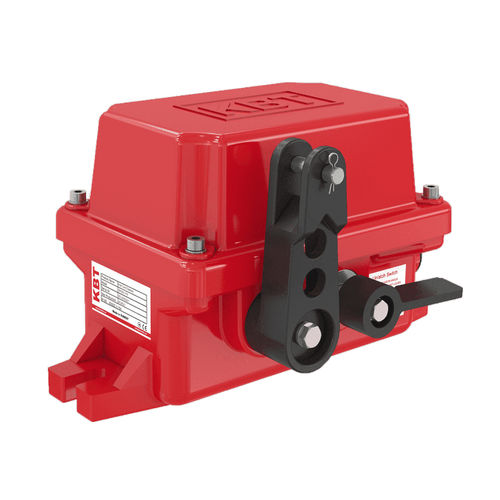

Pull cord switch TPR22-PR series

SPDTwater-resistantcorrosion-resistant

• BMC Composite Body is not oxidized! • It is resistant to blow and heavy conditions. • 2x50m Right and Left Rope Connection Distance • 3NO / 3NC Snap Action Contact Structure • It has CE and EAC Standards. TPR22-PR(XX) Pull Cord Switch (also called a rope switch) is a conveyor belt safety accessory designed to check and shut down conveyor systems TPR22-PR(XX) series of conveyor belt pull cord switch do not require maintenance. Materials used: The Body structure is made of BMC composite material and it is resistant to corrosion and oxidation. Shaft mechanisms are made of stainless steel and Arm mechanisms are made of hard plastic. Uses and Applications: It can be mounted on the application area with a steel rope. Also, it can operate by moving on one side or on both sides of a conveyor. If the ropes are pulled from one direction, the system is locked and the switches go to the stop position, then it is returned to normal with Manual reset. Safety Features: Products have IP68 protection class can work in the dustiest and dirty environments. Suitable for most industrial applications like conveyor belt at coal mining , cement plant , iron&steel factory , thermal power plants, etc.. General Description: Dimensions are 2x50 meters standard distance to the right and left. It has a 1NO + 1NC contact structure in the standard. Available modifications as per request: - The alarm and signal lights can be added to all models - It can be used at the longer distances - 3NO + 3NC contact structure can be applied
