Panel thermoforming machine

for refrigerator productionfor inner linersautomatic

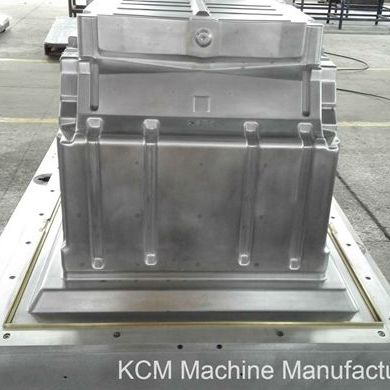

Thermoforming Mold for Inner Liner of Cabinet and Door Body KCM supplies Vacuum Forming Mold and PU Foaming Plug&Jig for over 30 clients all over the world, such as LIEBEHERR, SHARP, TOSHIBA, HAIER etc. Within long time working in this area, KCM has increased to be a plenty of experience for making Thermoforming Mold that based on different convention for fitting all kinds of Machine (e.g. COMMI, RIGO, KIFFEL and QS etc.). Especially in Treatment of Heating and Cooling water pipe, Sliding Device and Tolerance Remaining when Designing Mold Structure for assembly, they fit well with Inner Liner Sample when in modest or Even Zero Modification after finishing Mold Manufacturing and Installation. MOULD BODY DEMINSIONS: Main Body Material: INAFOND C5 (Cu>%4, Si <%0,3) material. Mechanical properties of: Rm 355 N/mm2; Rp (0.2) 255 N/mm2, A %5, HB 80-110 Other Materials: Avional and/or Anticorodal material for the cast AI. Machinery Technology: NC / CNC for dimensional accuracy. Surface Quality: N7 Level(The cast Al should not contain any porosity and/or pinholes on the surface.) Thickness of the cast AI: 20-30 mm(not higher than 50-60 mm in height). Then polish with using sand paper to have perfect surface everywhere without any visible junction marks. No mirror surface is required. After casting, the inner surface should be cleaned by sandblasting.
