Winding machine

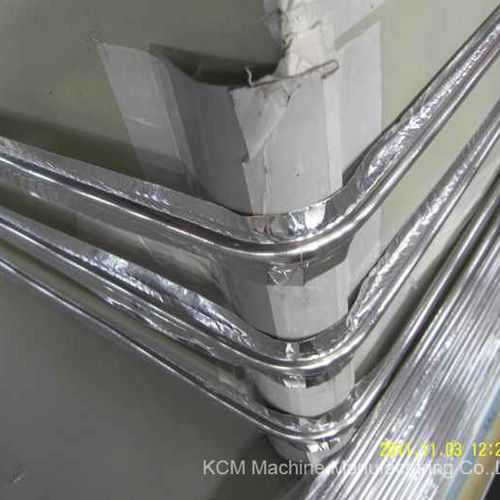

Winding Machine for Aluminum Pipe Evaporator This machine is especially for chest freezer inner liner to be covered by aluminum pipe evaporator that auto winding pipe around outside of inner liner. Ⅰ. General conception The first point for this winding machine is that it is necessary to use aluminum pipe to be processed in this machine, and then the pipe will be directly covered onto the surface of chest freezer inner liner, meanwhile with tape for sticking pipe tightly to connect with inner liner( slightly by manual assistance). The equipment is composed by de-coiling for pipe straightening and leveling, lower and raising device for freezer inner can be covered by pipe from the bottom to top automatically, pipe winding device, mold with auto clamping when inner liner put onto the clamp so that the inner liner can hold tightly for pipe winding, electrical control systems etc. Ⅱ. Technical parameter 1. Time circle≤45s per Piece. 2. Processing Material: Aluminum and Steel Pipe with diameter 7mm or according to customer’s requirement for winding tools adaptor, 0.9mm in pipe thickness. 3. AL Tape Width: 35~60mm, thickness: 0.4~0.7mm; 4. Product scope for inner liner: L800~1800mm×B450~750mmXH650~750; 5. Electric Power: Approximately 10KVA 380V/50Hz) 6. Compressed air: 0.5-0.65MPa; 7. Color: According to user’s demand. Ⅲ. Main Equipments Function 1. Coiling pipe device: For the purpose of placing coiling aluminum pipe. 2. Pipe buffer device: To erase the velocity synchronization tolerance. 3. Straightening and Raising Lowering Device: To make the pipe winding around the freezer inner liner with leveling pipe from the bottom to top auto.
