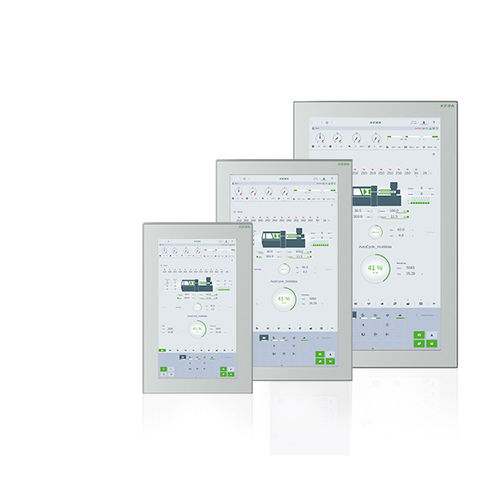

Multitouch screen HMI terminal KeTop AP524

projected capacitive touchscreenpanel-mount1280 x 800

The KeTop AP500 panel line offers robust gesture operation through an industrial multitouch with integrated touchbooster for glove operation. The RealTime Multitouch is able to transmit operator interactions in real-time via EtherCAT or ProfiNet directly to the controller. Many mechanical built-in elements and membrane keys are thus a thing of the past. With the KeTop AP500 line, you can reduce your HMI variants to one panel. This gives you full flexibility in the user interface thanks to the matching KeView Style software solution. The Intel Atom CPU with 7 Gen Intel HD graphics acceleration makes the KeTop AP500 panel line an optimal platform for visualization tasks. Multitouch, gesture control and graphic effects provide a new user experience in machine operation. -Real-time control of machines -Haptic feedback -Customizing of hardware and software -Optimized price/performance ratio RealTime Multitouch Controlling machines in realtime Using the unique RealTime Multitouch and corresponding RealTime Widgets, hand movements are reliably and directly translated into machine movements. Thus, the realtime capability of the operating panel is also provided for without expensive mechanical command devices.
