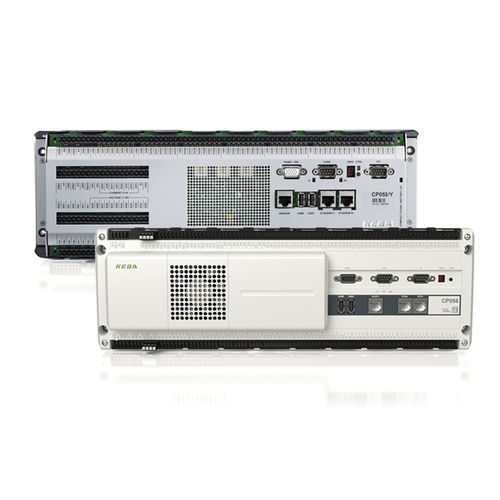

Embedded computer KeControl C1

Intel® AtomVGAEthernet

The assemblies of the CP 03x and CP 05x series are central control assemblies that have been optimized for the end-to-end automation of hydraulic, hybrid or electric injection molding machines in all performance segments. This hardware platform comes with different processor classes, offering optimum performance scalability for automation functions such as closed-loop and open-loop control and visualization in a single device. Hardware-based closed-loop control concepts The optimized interaction between the KEBA hardware and the KePlast control modules is key for perfect results. Sampling times up to 500µsec and innovative control concepts with direct hardware support guarantee best process quality results and set new standards in controlling complex injection molding processes. Three innovative features guarantee optimal process quality: Fast Cut-Off Reaction, Fast Reaction Control and Fast Closed-Loop Control. Find out more about these three features for best process quality: Fast Cut-Off Reaction: The intelligent FPGA hardware solution support a Fast Cut-Off Reaction with response times up to 62.5µsec. Fast Reaction Control: KEBA’s unique Fast Reaction Control feature can drastically reduce the dead times in control loops and significantly increase the control precision. Fast Closed-Loop Control: The FPGA technologies used in the CP05x controllers form the basis for the implementation of highly efficient control concepts directly in the controller hardware. This means fewer demands on the software, and the necessary modules are implemented in the hardware with top efficiency.
