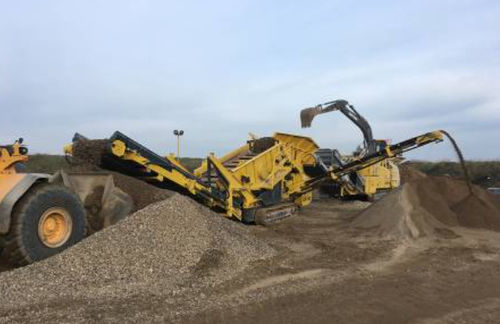

Process screener K5

mobilefor bulk materialscompact

The contractors heavy duty choice due to compact transport and a very high productivity. The K5 has a large range of screening media available ¡ncl. the Bivitec flip flow screen box for very difficult to process materials. The K5 with ¡ts long screen deck is perfect For precisión screening from scalping to Fine screening. Easy Service access and walkways give safe access to the complete machine. The K5 has the lowest fuel consumption in the industry. Available in full hybrid version Standard heavy duty plate apron feeder and hydraulic folding hopper walls Double deck screen box 5.000 x 1.500 mm (17’ x 5’) 7,5 m² screening surface upper deck, 6,6 m² lower deck Contractor’s choice, compact by weight and dimensions Optional Double deck Bivitec FLIP FLOW screen box 5.000 x 1.350 mm (17’ x 4,5’) Screening force up to 40 G 6,75 m² screening surface upper deck, 5,4 m² lower deck Feed hopper 7 m³ (9 yard³), several hopper extensions available Low emission engine Lowest fuel consumption in the industry Large range of screen meshes, fingers, punched plate & grizzly decks available Hydraulical liftable screenbox Hydraulic adjustabe screen angle 2 speed track drive Extensive option list to configure to your application
