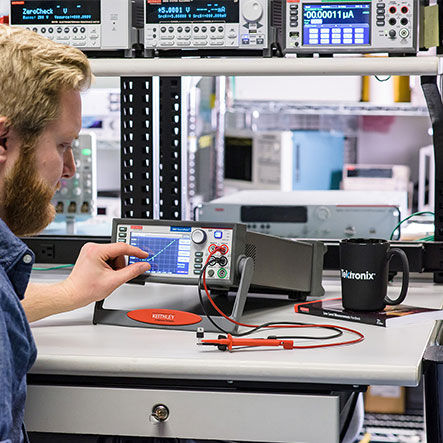

Keithley’s I-V curve tracer software leverages the unique touchscreen interface of the graphical 2400 Series SourceMeter® Source Measure Unit (SMU) instruments to recreate the familiar user experience of an I-V curve tracer for two-terminal devices. Adding the I-V curve tracer software to your SourceMeter instrument gives you a dedicated user interface for tracing the characteristics of your devices through both current and voltage. With a range of compatible instruments, I-V Tracer can utilize the full capabilities of each source measure unit, including the dual high-speed digitizers of the 2461 to perform tracing with AC polarity and pulsed DC, in addition to standard DC polarity. Though I-V Tracer will allow engineers to perform failure analysis and parametric characterization of diodes, more advanced I-V curve tracer configurations are required to test MOSFETS, IGBTs, and other high-power devices. Increase efficiency in the lab with I-V curve tracer software Enjoy traditional curve tracer functionality while equipping individual engineers with their own I-V curve tracer, rather than pooling resources for shared, outdated equipment. Keithley SourceMeter instruments are highly portable and easily fit on benches next to laptops and digital multimeters (DMMs). While Keithley’s I-V curve tracer software is installed, you retain the full source, sink, and measure capabilities of Keithley SourceMeter instruments with the functionality of a curve tracer just a click away. The modern interface allows easy export of curves via screenshots or CSV.
