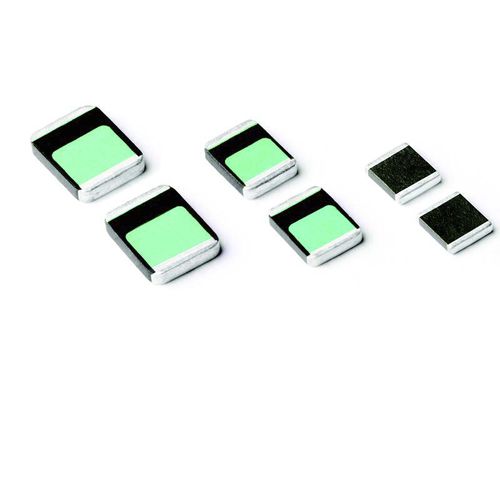

Electronic varistor DV Series
Add to favorites
Compare this product
Characteristics
- Options
- for electronics
- VAC
Max.: 300 V
Min.: 11 V
- VDC
Max.: 385 V
Min.: 14 V
- Primary current
Max.: 1,200 A
Min.: 100 A
Description
The DV series of medium voltage varistors is designed to protect electronic equipment
against high voltage surges in the medium voltage region. They offer excellent
transient energy absorption due to improved energy volume distribution and
power dissipation. Compared to other medium voltage SMD varistors, DV varistors
have a very low profile.
DV varistors are designed for surface mounting and are available in two model sizes
- 3225 and 4032 (the 2220 size is also available upon request). These transient
voltage suppressors cover an operating voltage Vrms from 11 to 300 V, featuring
maximum surge currents from 100 A to 1200 A.
