Data connector FTC series

straightcrimpvehicle equipment

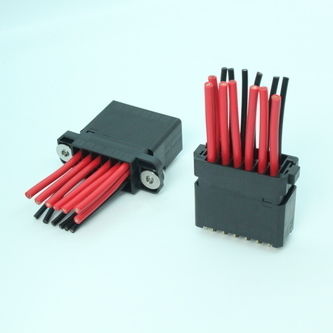

We have developed new variations of the "FTC series" connectors accommodate two 5.08 mm pitch crimped cables. (1) PCB side connector straight type (FTC11- □□ S □). (2) 10pin version added to PCB side connector / right angle type (FTC11), Cable to Cable type (FTC12), and locking type (FTC02). (3) 0.1μm thickness gold-plated versionadded to the PCB side connector and the crimp contact. Please refer to the table below for a list of variations. ・ FTC11- □□ S □: Plug (PCB side, straight type) ・ FTC11- □□□ B: Plug (PCB side, straight type, and right angle type) - 0.1μm thickness gold-plated contact. FTC02-10, FTC11-10L □, FTC12-10: 10 pin version added ・ # 625B- □□-□: crimp contact gold-plated thickness 0.1 μm ・ # 641B- □□-□: crimp contact with 0.1 μm thickness gold-plated ・ Electric power equipment ・ Vehicle equipment ・ Industrial equipment ・ Electronic application equipment ・ Amusement equipment ・ Office equipment - Two crimped cables can be accommodated into one contact. - Applicable to AWG # 14/16/18/20. - Crimped cable can be mounted at any point of the housing. - Crimping two cables together enables to save space and transfer power-supply between connectors. -Mating guide structure absorbs ± 3 mm in the location error. -Marginal screw hole of the cable side connector absorbs ± 0.7 mm in the XY direction after mating. (FTC01) - Effective mating length is as tall as 3 mm. - Twin-leaf pinching 2 point contact structure prevents buckling of contact, and the stable contact force improves reliability. ・ Insulator materials: PBT (with glass-filled) UL94V-0 material, black ・ contact material: Copper alloy ・ contact plating: Nickel plated base Contact / gold-plated
