Filter dust collector TR-1

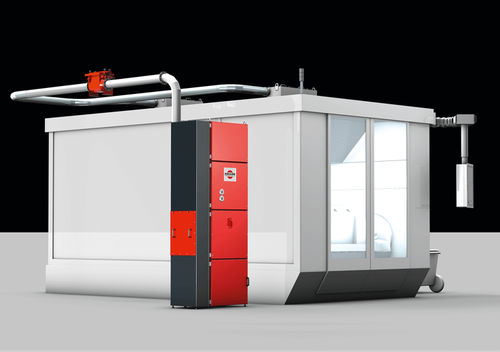

Explosive dust from dry processes or MQL is extracted directly at the machine and safely separated TR-1 for MQL and dry processing was designed as a stand-alone-system to be installed adjacent to a machine (emission source). The TR-1 single separator ProVent Plus with a pressure proof protective shaft for the safe upward dissipation of the shock wave. Prevention or dissipation of dust explosions In addition to non-combustible dusts, the explosive dusts from the treatment of light metals such as aluminum, magnesium and modern metal compounds can be safely extracted and separated using appropriate safety measures - without a designated protective zone. Minimum space required 597 mm x 830 mm Integrated storage filter category H13 (separation efficiency of 99.95 % at 0.1 μm – 0.3 μm) Integrated flow monitoring Integrated temperature monitoring Status monitoring of the dust collection tank Low operating costs
