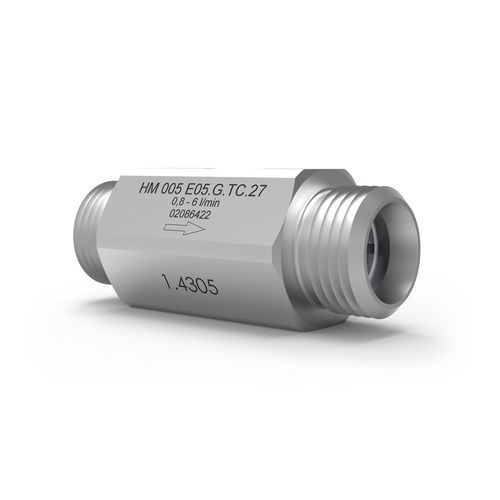

Turbine flow meter HM Evolumefor liquidsstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- turbine
- Type
- volume
- Fluid
- for liquids
- Material
- stainless steel
- Applications
- industrial
- Volumetric flow rate
Max.: 500 l/min
(132.086 us gal/min)Min.: 0.3 l/min
(0.0793 us gal/min)- Process temperature
Max.: 350 °C
(662 °F)Min.: -60 °C
(-76 °F)- Process pressure
630 bar
(9,137.38 psi)- Repeatibility
0.05 %
Description
The HM E turbine flow meter series (E for Ermeto Fittings) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication and non-lubrication media. They are particularly suitable for low and medium viscosity liquids, such as water, emulsions, glycol mixtures and light oils. Even the measurement of cryogenic fluids is possible.
Functions & Specifications
Linearity
±1 % of actual flow
Viscosity Range
0.8 up to 30 mm²/s
Materials
Housing: as per DIN 1.4404 [AISI 316L] (others on request)
Wheels: as per DIN 1.4460 [AISI 329] (others on request)
Bearing: Tungsten carbide sleeve bearing
Catalogs
HM E Series
6 Pages
