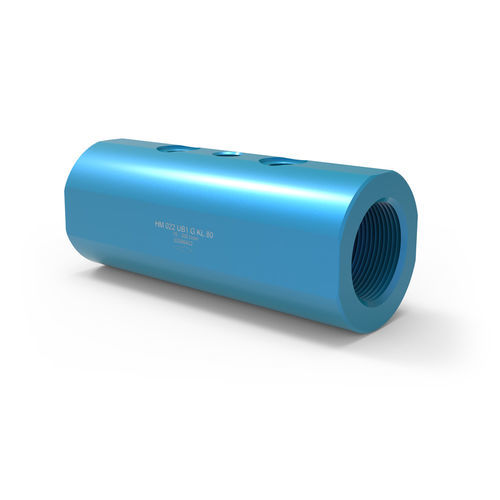

Turbine flow meter HM U
volumefor liquidsstainless steel

Turbine flow meter - HM U - KEM Küppers Elektromechanik GmbH - volume / for liquids / stainless steel
Turbine flow meter - HM U - KEM Küppers Elektromechanik GmbH - volume / for liquids / stainless steel
Turbine flow meter - HM U - KEM Küppers Elektromechanik GmbH - volume / for liquids / stainless steel - image - 2
Turbine flow meter - HM U - KEM Küppers Elektromechanik GmbH - volume / for liquids / stainless steel - image - 3
Add to favorites
Compare this product


Characteristics

Technology
turbine
Type
volume
Fluid
for liquids
Material
stainless steel, aluminum
Applications
industrial
Volumetric flow rate

Max.: 300 m³/h
(10,594.4 ft³/h)

Min.: 1.2 m³/h
(42.3776 ft³/h)

Process temperature

Max.: 120 °C
(248 °F)

Min.: -40 °C
(-40 °F)

Process pressure

420 bar
(6,091.58 psi)

Repeatibility

0.5 %

Description

The HM U turbine flow meter series (U for aluminum housing and ball bearing) is used to measure continuous and discontinuous flow rates. They are mainly used for lubrication media. Especially well-suited for oils and hydraulic fluids. Functions & Specifications Linearity ±2.5 % of actual flow (viscosity 30 mm²/s) Viscosity Range 30 mm2 /s Materials Housing: as per DIN 3.4365 [EN AW-7075] Wheels: as per DIN 1.4122 Bearing: Tungsten carbide sleeve bearing
