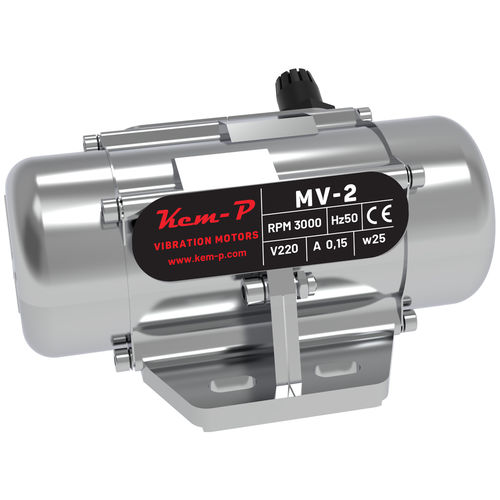

Electric vibration motor KVM-MV2 series
circularfeederfor hopper

electric vibration motor
electric vibration motor
Add to favorites
Compare this product


Characteristics

Operation
electric
Type
circular
Product applications
feeder, for hopper, for silos, bagging, building, construction, for concrete, industrial, unloader
Other characteristics
micro, foundry
Force

Min.: 22 kgf

Max.: 62 kgf

Rotational speed

3,000 rpm
(18,849.6 rad.min-1)

Power

Min.: 0.025 kW
(0.034 hp)

Max.: 0.05 kW
(0.068 hp)

Description

Kem-P KVM-MV Series Micro Vibration Motors are 2-pole industrial vibration motors that produce power in the range of 0.025 kW - 0.05 kW, providing 3000 rpm, 50 Hz to 60 Hz operation option and centrifugal force between 22 kgf and 62 kgf. KVM-MV Series Micro Vibration Motors have the IP65 protection class. Scope of application Vibrating machines in general, vibrating screens, vibrating conveyors and extractors, compaction tables, foundry ladles, fluidized beds, spiral elevators. Advantages • H class insulation • Mechanical protection IP 65 • Working ambient temperature from -30°C to +40°C • Universal foot connection dimensions • Reinforced strong foot design, aluminum alloy metal injection body • High-quality bearings Applications • Concrete Compaction • Big Bag unloading • Big Bag filling • Big Bag compression • Circular vibrating screens • Decoration station • Cleaning the filters • Trucks and industrial vehicles • Parquet and block machines • Semolina purifier • Shale shakers • Vibrating floors for silos • Vibrating extractors for silos and hoppers • Silo transport vehicles • Vibrating tables for testing • Vibrating fluidized beds • Vibrating feeders • Vibratory excavators • Vibrating gravimetric separators • Vibrating grid feeders • Vibrating channels • Vibratory sorters • Vibrating spirals • Soil recovery strainer • Bagging machines • Vibro dryers • Vibropresses • Vibro scans Industries • Building and Construction Sector • Energy sector • Systems and Machines • Heavy Industry Sector • Feed Sector • Food industry • Plastics and Chemistry Sector • Environmental Technologies
