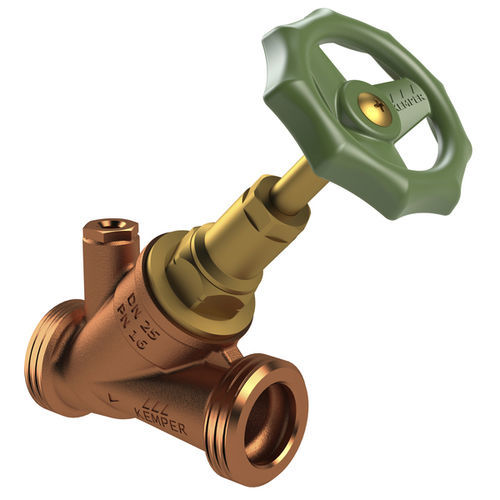

Diaphragm valve 174 2G serieswith handwheelstopdrain
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- stop, drain
- Body
- male, seat, brass, EPDM, plastic
- Applications
- parts
- Other characteristics
- ISO, DIN
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: 0 °C
(32 °F)- Flow rate
Max.: 84.8 m³/h
(2,994.68 ft³/h)Min.: 5.9 m³/h
(208.36 ft³/h)
Description
gunmetal housing, brass bonnet
maintenance-free spindle gasket with self-lubricating EPDM lip gasket
EPDM-seat gasket
male union thread
with plugged drain port
Pt1000 temperature sensor or thermometer can be added using immersion sleeve
spindle thread not in contact with medium
with green handwheel
free from dead spots
Standards and Approvals
DVGW approval
ÖVGW approval
SVGW approval
WRAS approval
KIWA approval
VA approval
plastic parts with KTW and W 270 approval
according to accepted materials list from German environmental agency
up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
DIN EN 1213
ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
