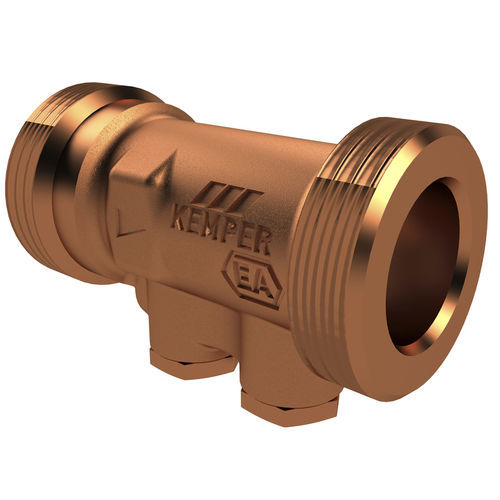

Cartridge check valve 158 1G series
for waterDINmale

Cartridge check valve - 158 1G series - Kemper Olpe GmbH - for water / DIN / male
Cartridge check valve - 158 1G series - Kemper Olpe GmbH - for water / DIN / male
Cartridge check valve - 158 1G series - Kemper Olpe GmbH - for water / DIN / male - image - 2
Add to favorites
Compare this product


Characteristics

Type
cartridge
Fluid
for water
Connexion
DIN
Body
male
Applications
for water
Material
plastic, metal
DN

Min.: 15 mm
(0.591 in)

Max.: 50 mm
(1.969 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: 0 °C
(32 °F)

Max.: 90 °C
(194 °F)

Flow rate

Min.: 4.3 m³/h
(151.85 ft³/h)

Max.: 63.9 m³/h
(2,256.61 ft³/h)

Description

particularly suitable for hot water circulation systems due to very low opening pressure wetted metal parts made from dezincification-free and corrosion-resistant gunmetal, resistant against aggressive water male union thread with plugged drain port with test port controllable check cartridge free from dead spots for any installation position Standards and Approvals DVGW approval ÖVGW approval SVGW approval KIWA approval BELGAQUA approval plastic parts with KTW and W 270 approval according to DVGW worksheet W 570 according to accepted materials list from German environmental agency up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1 DIN EN 13959 ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT
