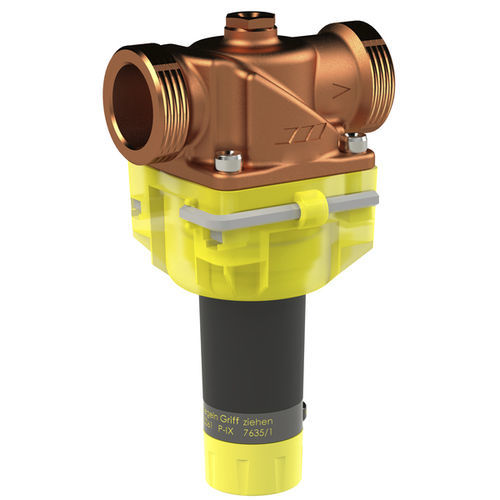

DIN pressure relief valve 710 0G series

stainless steeladjustable

single-seated valve with balanced plug internal parts made of gunmetal, stainless steel and plastic easy to maintain PRV housing made of transparent plastic outlet pressure adjustable on lockable knurl with pressure scale with stainless steel mesh at inlet male union thread for any installation position plugged port for optional manometer incl. allen key incl. gunmetal base module maintenance requirements in accordance with DIN EN 806-5 must be complied with Standards and Approvals DVGW approval WRAS approval plastic parts with KTW and W 270 approval according to accepted materials list from German environmental agency up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1 DIN EN 1213 / EN 1567 ÜA-Reg.-Nr. R-15.2.3-21-17048, WIEN-ZERT Technical Data max. operating temperature 30 °C min. outlet pressure 0.15 MPa max. outlet pressure 0.60 MPa factory setting 0.4 MPa
