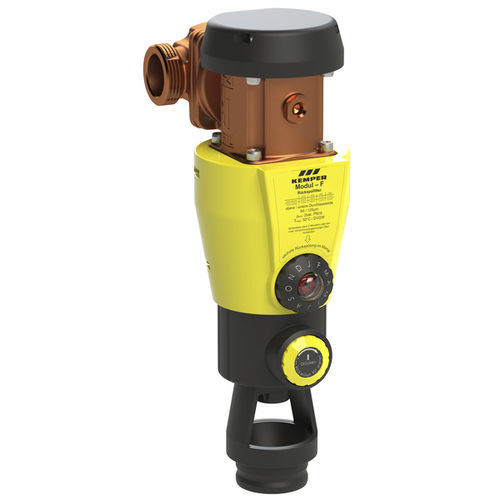

mechanically acting, manual backwash filter
internal parts made of gunmetal, stainless steel and plastic
with differencial pressure controlled pollution indicator for maintenance
opaque filter housing to prevent algae growth
with manual backwash function for filter cleanup under operation

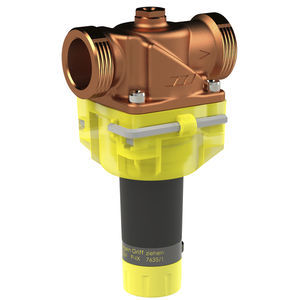

can be retrofitted with optional pressure reducing valve cartridge DM

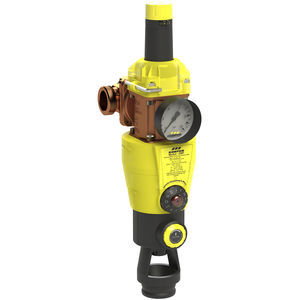

expandable to a PRV-filter combination DMF by use of optional PRV cartridge DM
male union thread
exchangable filter cartridge
rotatable drain according to EN 1717
free from dead spots
for horizontal and vertical installation, drain valve down
adjustable month indicator for next maintenance
incl. allen key
incl. gunmetal base module
maintenance requirements in accordance with DIN EN 806-5 must be complied with
Standards and Approvals
DVGW approval
plastic parts with KTW approval
according to accepted materials list from German environmental agency
up to DN 32 soundproofing certification according to DIN EN ISO 3822 Class 1
DIN EN 1213 / EN 13443 / part no. 7120G13200 deviant to DIN EN 13443-1
Technical Data
max. operating temperature 30 °C
min. primary pressure 0.2 MPa
lower mesh 90 µm
upper mesh 125 µm
