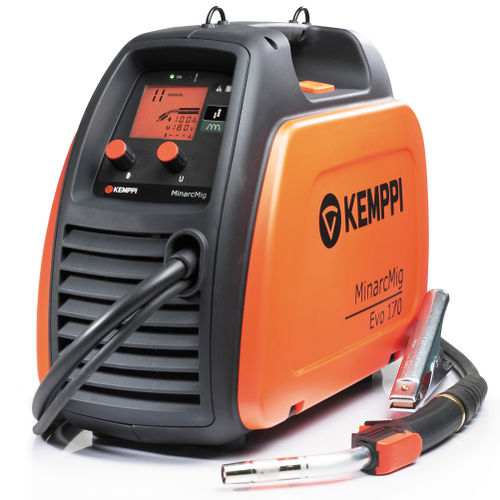

MIG-MAG welder MinarcMig Evo 170

single-phaseportablewith separate wire feeder

AN ADAPTIVE TOOL FOR THE MOBILE WELDER MinarcMig Evo machines pack huge MIG/MAG welding capacity and quality into their portable, compact size. Choose from either 200 A or 170 A models, delivering their welding power at 35 % duty cycle from a 16 A, 1-phase mains supply. MinarcMig Evo delivers premium results wherever your work takes you. MinarcMig Evo 200 offers Automatic and Manual mode set-up for precise welding quality and arc ignition, monitored and controlled by Kemppi’s adaptive arc regulation system. MinarcMig Evo 170 offers manual setting only, with separate controls for voltage and wire feed speed. Technical specifications Connection voltage 1~ 50/60 Hz 230 V ±15% Fuse (delayed) 16A Minimum generator power 4.2 kVA Output 35% ED 170 A/24 V Output 100% ED 100 A/20 V Open circuit voltage 70-75 V Operating temperature range -20…+40 °C External dimensions LxWxH 450 × 227 × 368 mm Weight (no accessories) 13 kg Degree of protection IP23S Standards IEC 60974-1, IEC 60974-5, IEC 60974-10, IEC 61000-3-12 Wire spool weight, max. 5 kg Wire spool diameter, max. 200 mm
