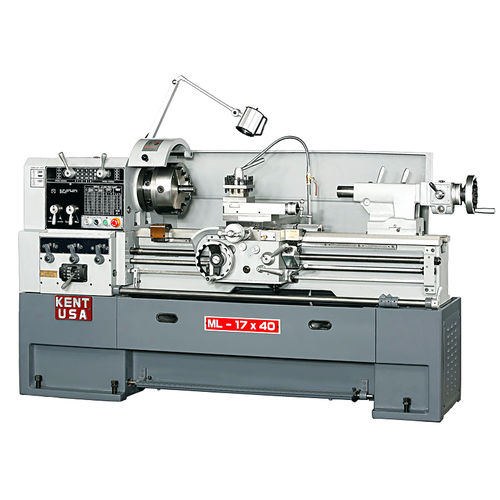

Conventional lathe ML/X-1740T
horizontalCamlock D1-6precision

conventional lathe
conventional lathe
Add to favorites
Compare this product


Characteristics

Control type
conventional
Spindle orientation
horizontal
Spindle mount
Camlock D1-6
Performance
precision
Associated function
threading
Diameter

17 in

Spindle speed

Min.: 36 rpm
(226.195 rad.min-1)

Max.: 1,800 rpm
(11,309.734 rad.min-1)

Nominal power

7.5 ch
(7.5 hp)

Overall lenght

89 in

Overall width

33 in

Overall height

58 in

Weight

3,850 lb
(1,746 kg)

Description

3.125” Spindle Through Hole Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning Adjustable Over-load Feed Clutches Quick Reversal Feed from Apron Full-length Safety Foot Brake Spindle Jog Button Control One-shot Lubrication for Apron, Carriage, and Bed Ways Multi-position Adjustable Feed Position Stops Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock Dual Inch/Metric Dials with Quick-change Sleeve Accessories Standard Accessories 3-jaw chuck Steady rest Follow rest Coolant system Full-length splash guard Worklight Chuck cover Thread chasing dial Toolbox with standard tools 3-position carriage stop Bed mount carriage stop Optional Accessories 4-jaw chuck Digital Readout System (View Brochure) Royal spindle type live center BTC 3-jaw chuck with back plate (Zero-set) Taper turning attachment Rustlick coolant Micro carriage stop
