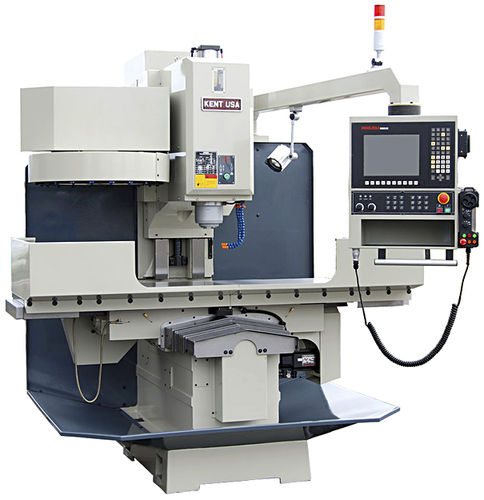

3-axis CNC milling machine TW-50MCOverticalfixed-bedwith rotary table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- fixed-bed, with rotary table
- Spindle mount
- BT 40, CAT40
- Number of tool stations
- 20 tools
- X travel
50 in
- Y travel
22 in
- Z travel
22 in
- Rotational speed
Max.: 8,000 rpm
(50,265 rad.min-1)Min.: 70 rpm
(440 rad.min-1)
Description
Meehanite GB300 casting for superior rigidity
Hardened and Ground Square Y and Z-axis ways
Hardened and Ground table top and dovetail ways
Precision Ground ballscrews on X, Y and Z-axis
Ultra precision ground spindle, ABEC-7 bearings
Hardened and Ground spindle spline and taper
Auto Lube system with metered Check valves
Metal telescoping way cover on Y-axis
Built in Coolant system and Chip pan
Halogen work light
Accessories
Standard Accessories
20 Tools Carousel ATC
Auto-Lubrication Unit
Flood Coolant System
Optional Accessories
MPG Handheld Jog Box
Clamping Kit
CAT 40 End Mill Adapters
Rustlick G25 Coolant
Angle-Lock Vise
Rotary Table
Full Enclosure
