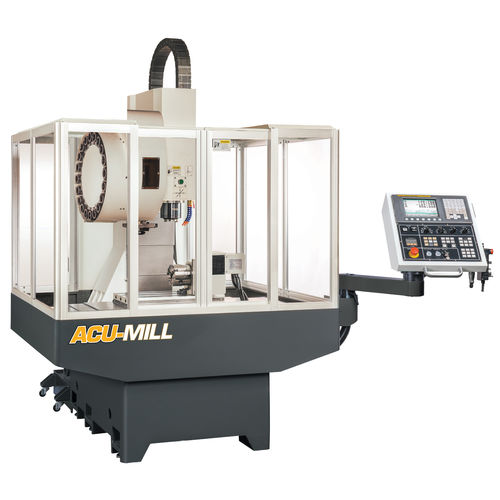

3-axis CNC milling machine Acu-Mill AM8

verticalcolumn typeCAT40

The bed and column are manufactured from high quality Meehanite cast iron and stress relieved for a lifetime of accuracy. Box-type column construction, combined with scientific rib reinforcement, for outstanding rigidity as well as excellent ability to dampen vibration, and reduce deflection and thermal displacement. Precision linear motion guides are used on X, Y, Z-axes, providing 15 M/min. of rapid traverse rates and 10 M/min. of cutting feed rates on X, Y, Z-axes. High thermal and mechanical stability to ensure a lifetime of accuracy. Equipped with an 8-tool carousel-type ATC Perfect for R&D, medical manufacturing, and technical schools. Accessories Standard Accessories Machine bench top, tray and stand PMI linear guide way, ball screws AC servo motors (X,Y,Z Spindle) 8PC armless tool magazine Auto oiler 220V, 3 phase Coolant system (8G) Rigid Tapping(Alu. M3~m8/Steel M4~m8) Alarm lamp Chip bucket Optional Accessories CE version Full enclosure LED work light Manual air gun Coolant system (15G) Oil Skimmer (For 8G/15G only) NR12 door interlock (For Brazil only) 4th Axis rotary table (Not for 808D) Screw type or link type chip conveyor Transformer Door lock Coolant through spindle Robot arm Drum type ATC 900×300 mm table
