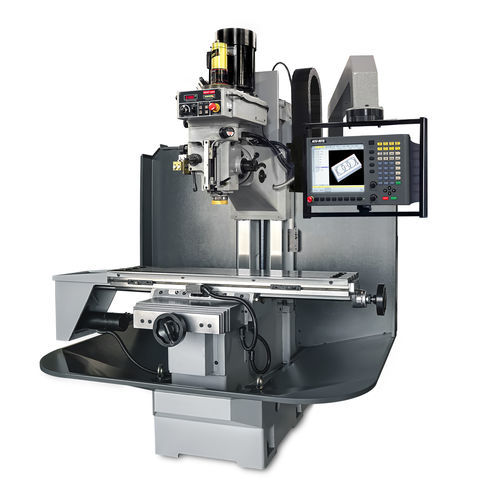

3-axis CNC milling machine TW-32QIverticalfixed-bedCAT40
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- fixed-bed
- Spindle mount
- CAT40
- X travel
34 in
- Y travel
20 in
- Z travel
20 in
- Rotational speed
Max.: 6,000 rpm
(37,699 rad.min-1)Min.: 60 rpm
(377 rad.min-1)- Power
7.5 ch
(7.5 hp)- Table load capacity
1,000 lb
(454 kg)- Weight
4,200 lb
(1,905.09 kg)- Overall length
72 in
- Overall width
86 in
- Overall height
88 in
Description
Programmable spindle rpm control
Spindle rpm over-ride knob on control
60-6000 RPM without manual gear changes
NST-40 or CAT-40 taper spindle available
Enhanced flux-vector inverter on spindle drive
Metal hand wheels on X-axis and Y-axis
Full automatic CNC and manual/DRO mode capability
Solid boxed ways on column and saddle ways
Metal telescoping way cover on front Y-axis
Auto lubrication unit with metered check valves
Flood coolant with splash guard and chip pan
Built-in coolant reservoir in machine base
Overhead arm mounting of CNC control
Halogen work light built-in for convenience
DRO mode for manual machining capability
Large 1.25” diameter precision ground ball screws
Manual quill capability for greater flexibility
Accessories
Standard Accessories
Conversational CNC Control
Programmable Spindle RPM and M-Function Option
Spindle Override Knob on Control
Flux-Vector AC-Frequency Drive Head
Auto Lubrication System and Halogen Work Light
Flood Coolant System
Chip Pan
Optional Accessories
Angle-Lock Vise
Air-Power Draw Bar
Rotary Table
440V Power Option
