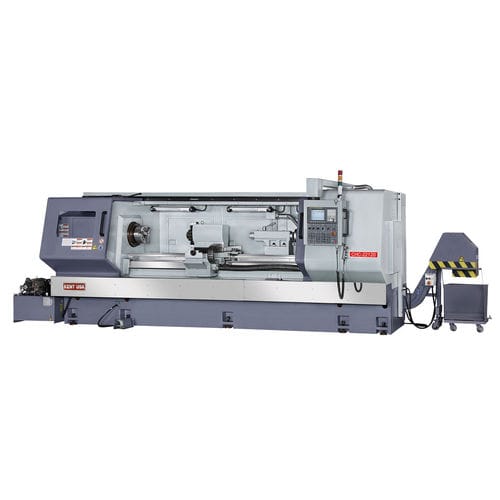

CNC lathe CHC-22 horizontalteach-in
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Other characteristics
- teach-in
- Diameter
21.7 in
- Spindle speed
Min.: 35 rpm
(219.911 rad.min-1)Max.: 3,500 rpm
(21,991.149 rad.min-1)- Axe X
12 in
- Axe Z
31 in, 50 in, 70 in, 109 in
- Rapids on X
5 in/s
(7,620 mm/min)- Rapids on Z
7 in/s
(10,668 mm/min)- Nominal power
15 ch
(15 hp)- Weight
8,910 lb, 9,680 lb, 10,560 lb, 11,660 lb
(4,042 kg, 4,391 kg, 4,790 kg, 5,289 kg)
Description
Rigid Meehanite castings with extra ribbing
Induction hardened and ground ways
4 speed Auto-shifting gearbox with alloy steel gears that are hardened and ground
Auto Lube system with metered Check valves
Accessories
Standard Accessories
Fagor 8055i CNC control
Fagor AC servo spindle motor
Auto lubrication unit
Flood coolant system
Optional Accessories
3-jaw chuck
4-jaw chuck
Face plate
Hydraulic chuck
Hydraulic tailstock
Follow rest
Quick change toolpost
Royal live center MT#3
