Air drain KHCR265/4”RD

manualmechanical

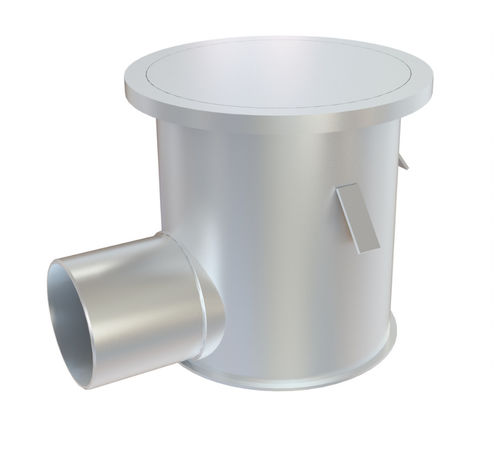

CLEANROOM GULLY WITH FOUL AIR TRAP PRODUCT CODE: KHCR265/4”RD The KHCR265/4”RD Gully is a Round Body, Square Top/Side Outlet Gully for Heavy Duty Areas with High Flow Rates. This is a sealed cleanroom gully with a strong positive seal created by machining away a 10mm groove from a 20mm top plate. A 10mm top plate with a recessed ‘o-ring’ creates the seal. This top plate is then removable with a heavy duty suction cup available as an accessory. They are designed for use primarily in Food/Beverage/Pharmaceutical factories. They can be used in both light duty and very heavy duty trafficked areas (sealed gullies are most often used in laboratories or cleanrooms which are limited to pedestrian traffic – however the 10mm top plate makes it possible to drive heavy factory traffic over these gullies). The KHCR265/4”RD standard gully takes 10mm thick sealed gratings but 10mm slotted and perforated gratings can also be used. In most cases a 4” or 6”SCH10 outlet is required because these are most popular with American Multinational Pharmaceutical companies who have scheduled stainless steel pipework to connect to, but this can easily be substituted for a 110mm or 160mm outlet pipe. It is trapped as standard with the Kent Weir Trap. This family of products also includes KHCR265/4″RD, KHCR365/4″RD. Grade 304 (1.4301) or 316 (1.4401) Stainless Steel to BS EN 10088 Strong Short lead time Usable in both heavy and light duty areas Suitable for internal factory drainage and external civil drainage projects
