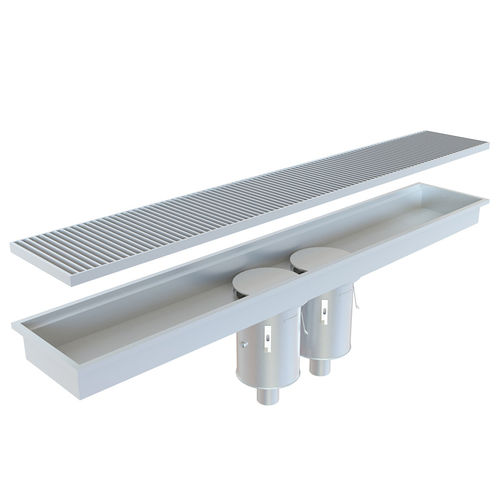

Stainless steel drainage channel KSBC450/ KVCRP400/4”

with gratingfloor

DOUBLE POP UP CHANNEL TRENCH PRODUCT CODE: KSBC450 The KSBC450/ KVCRP400/4”/4” is an amalgamation of a trench drain or channel with 2 sealed pneumatic drain outlets. It can be used to temporarily contain a valuable, or a hazardous liquid, before diverting that liquid to a sump. Then the 2nd outlet is opened for wash down and diverting to the foul water drainage. The pneumatic connection is accessed from inside the drain body. A flange supplied by Kent is mechanically connected to the inward air pipe. A second flange is connected to the internal air pipe and these come together to form a double flange/gasket connection. 3 options: Single-acting Sprung Out Cylinder Single-acting Sprung In Cylinder Double Acting Cylinder Connect to Control Room, Sprinkler System or Rotary Switch Versions available to Spring Up, Spring Down or Both 316L Stainless as standard European Design with internal trap, or American Design Trapped outside the drain
