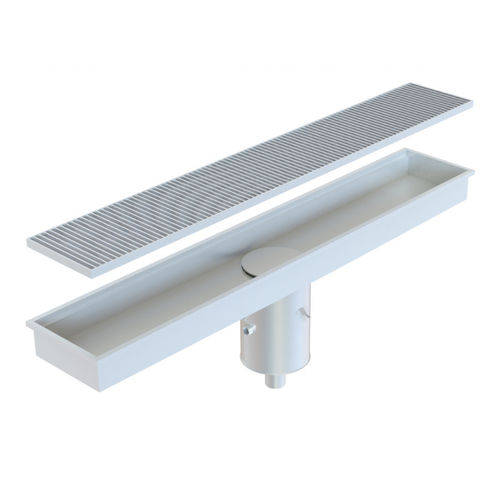

Stainless steel drainage channel KSBC450

with gratingfloor

The KSBC450/ KVCRP400/4” is an amalgamation of a trench drain or channel with a sealed pneumatic drain outlet. It can be used to temporarily contain a valuable, or a hazardous liquid, before diverting that liquid to a sump. The pneumatic connection is accessed from inside the drain body. A flange supplied by Kent is mechanically connected to the inward air pipe. A second flange is connected to the internal air pipe and these come together to form a double flange/gasket connection. It can be used a Firewater Containment or Evacuation Drain, A Chemical Spill Containment Drain, or as an Aid to the Cleaning Regime – where all sealed drains can be opened and closed remotely. 3 options: - Single Acting Sprung Out Cylinder - Single Acting Sprung In Cylinder - Double Acting Cylinder Features - Connect to Control Room, Sprinkler System or Rotary Switch - Versions available to Spring Up, Spring Down or Both - 316L Stainless as standard - European Design with internal trap, or American Design Trapped outside the drain
