Hydraulic relief valve

cartridge

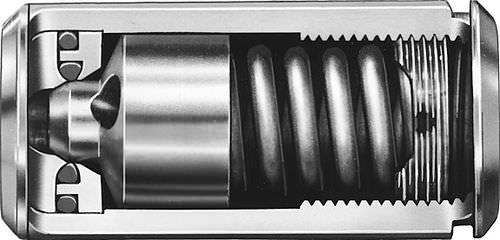

The Kepsel® cartridge has the same internal features as its counterpart Kep-O-seal® adjustable inline relief valve. These adjustable, spring-loaded poppet valves are used to limit system pressure. Excess pressure unseats the poppet, allowing flow with minimal increase in system pressure. As fluid is released the system pressure decreases until the spring force re-seats the poppet. Kepner's Flexible Seal Seat™ ensures bubble-tight shutoff of liquid or gas. The relief pressure can be set using a tamperproof internal adjustment screw. Standard and specialty valves handle a wide variety of relief applications, and are ideal for use in a manifold, sub-plate, or cylinder head. Features and Benefits: Flexible Seal Seat™ for zero leak (bubble-tight) seal No threaded connections (avoid potential leakage) Both O-Ring seals positively secured Wide relief adjustment range 50 to 2000 PSI (3.45 to 138 bar) Tamperproof Nylok® adjustment set relief pressure/prevent slippage Poppet stop inside valve body prevents spring from bottoming out Compact, easy installation – Accessory Kepner Holding Device Kits available
