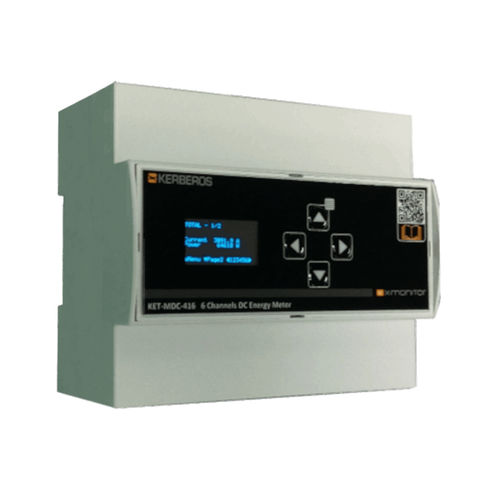

DIN rail electric energy meter KET-MDC-416

Modbuswith LCD display

The KET-MDC-416 allows the measurement of 6 continuous currents with values between -2500 A and +2500 A. It uses small Hall sensors connected with a 2m long cable as signal transducers. The display, with which it is equipped, allows sensor calibration via the integrated menu, displays the six readings in Amps, the reading in Volts, Power and Energy on the 6 channels. It features an RS485 interface with ModBUS RTU protocol compatible with the KET-RMB-211 ModBUS Bridge/Master and X-Monitor Gateways and any third-party ModBUS RTU master. The KET-MDC-416 is self-powered by the same voltage used for energy calculation. GENERAL SPECIFICATIONS Degree of Protection - Front panel: IP40; Terminals: IP20 Operating Temperature - -30 to +70 °C CONTAINER Dimensions - 106.3 x 90 x 62 mm (W x H x D) Fixing - Wall or DIN rail mounting DIN modules required - 6 DIN modules Enclosure Type - Industrial or switchboard Material - Blend PC/ABS self-extinguishing UL94-VO Connectors - Removable screw terminals POWER SUPPLY Voltage - 20 ÷ 60 VDC non-isolated Consumption - < 1.5 W @ 20 ÷ 60 VDC RS485 INTERFACE Protocols - ModBUS RTU CURRENT SENSOR Sensor type - Hall effect probe Current Range -2500 ÷ +2500 A Typical Sensitivity - 280 V/T Accuracy - 0.5%. Tolerance - 1%. Linearity - ± 0.2% Linearity Range -7.5 +7.5 mT Non Linearity - ±1% Temperature Drift <±200 ppm/°C Spectral Noise Density <125 nT/sqrt(Hz) (f = 10 Hz ÷ 10 Hz) MEASURING RANGE Sensed - Current and Voltage Calculated - Power and energy for each channel, plus total values, with 0.5% accuracy on energy calculation
