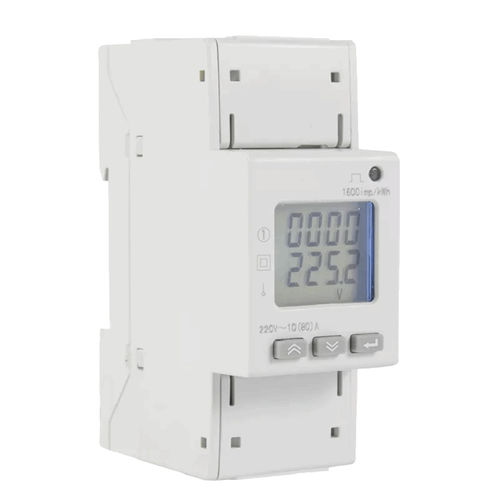

Single-phase electric energy meter KET-PMM-301

DIN rail50 HzModbus

The KET-PMM-301 is a single-phase energy meter with LCD display and integrated keypad. It is particularly suitable for active energy measurement and cost allocation in applications up to 80 A (direct connection). It integrates the measurement of all power parameters (such as current, voltage, active power, reactive power, apparent power, frequency, power factor, etc.). It has the ModBUS-RTU protocol with RS485 interface to meet communication network management requirements. GENERAL SPECIFICATIONS Degree of protection - IP20 Operating Temperature - -25 ÷ +55 °C Storage Temperature - -40 ÷ +70 °C Relative Humidity - MAX 95% non-condensing CONTAINER Dimensions - 36 x 90 x 65 mm (W x H x D) Fixing - DIN rail DIN modules required - 2 DIN modules Switchboard Type - Industrial or switchboard POWER SUPPLY Power Supply Voltage - Self-powered, 230 VAC (50 Hz) Power Consumption - Self-powered <10 VA Type of Connectors - Integrated screw terminals POWER METER Connection - Single-phase 2-wire Connection - Direct insertion Maximum Rated Current - 10(80)A Minimum Rated Current - Imin = 0.5 A Accuracy - Class 1 Connections - Screw terminals <1.8 Nm Configuration - From keypad RS485 INTERFACE Supported Protocols - ModBUS RTU Communication Speed - 38400, 19200, 9600, 4800 bps Insulation - Class II Connector Type - Integrated screw terminals CURRENT AND VOLTAGE INPUTS Voltage inputs - 75 to 260 VAC Current inputs - 80 A CERTIFICATIONS Standards Compliance - EN50470, IEC61000, EN55022, IEC60068, IEC60529, IEC60695-2-11 Approvals - CE, MID
