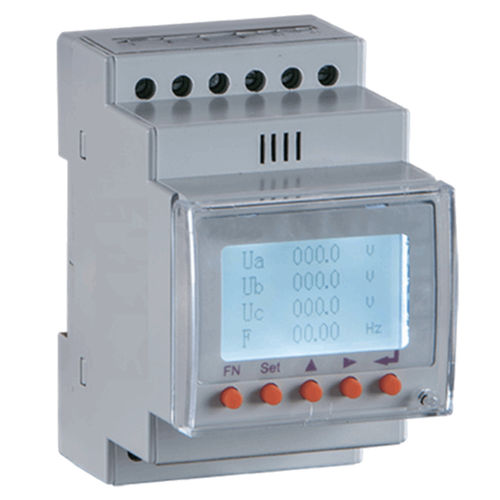

Three-phase electric energy meter KET-PMT-317.000

DIN railRS-485Modbus

The KET-PMT-317.000 is the Rogowski coil energy meter for energy measurement in industrial and civil environments. It integrates measurement of all power parameters, multi-level power measurement, four-quadrant power measurement, harmonic analysis, power monitoring and evaluation management. It features the ModBUS-RTU protocol with RS485 interface to meet communication network management requirements. The LCD display is used to configure product parameters and check the status of the monitored system. The power meter is supplied with a set of three Rogowski rings with variable diameter depending on the load to be monitored. GENERAL SPECIFICATIONS Degree of Protection - IP20 Operating Temperature -10÷+55°C Storage Temperature -20÷+70°C Relative Humidity - <95% non-condensing CONTAINER Dimensions - 54x85x64mm (WxHxD) 3 DIN modules Connectors - Integrated screw terminals POWER SUPPLY Voltage - 85÷265VAC or 100÷350VDC Consumption - <= 10VA POWER METER Insertion - Three phases, four wires Accuracy - Class 1 RS485 Protocols - ModBUS RTU Communication Speed - 3÷38400bps CERTIFICATIONS - Standards - EN 61326-1-2013; EN61000-3-2:2019, EN 61000-3-3:2013+A1:2019; EN61010-1:2010; EN62321-1:2013; EN 62321-2:2014; EN62321-3-1:2014; EN 62321-4:2014/A1:2017; EN 62321-5:2014; EN 62321-6:2015; EN62321-7-1:2015; EN62321-7-2:2017; EN62321-8:2017. Approvals - CE; RoHS
