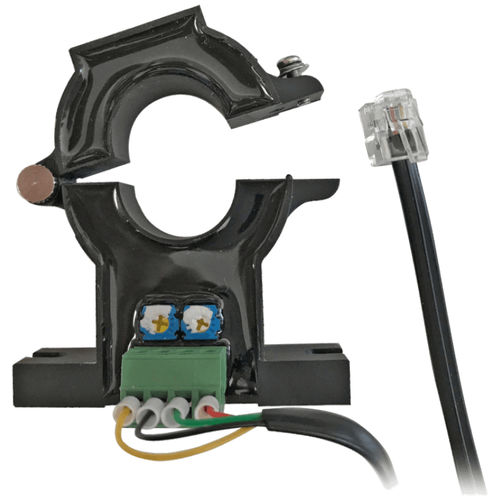

Open-loop Hall effect current sensor KET-SHA-020.21

DCACsplit-core

The KET-SHA-020.21 is part of a newly developed series of open-loop Hall current sensors that can be used for the detection of DC, AC, even high-frequency, impulse and irregular current signals. Insulated on the primary and secondary side ensures maximum electrical safety. Equipped with a 2 m long connection cable with RJ12 connector, through which power is supplied from a single external, stabilised DC voltage. GENERAL SPECIFICATIONS Operating temperature - -25 ÷ +80 °C Storage Temperature - -40 ÷ +85 °C CONTAINER Dimensions - 60 x 61 x 20.5 mm (W x H x D) Cable Diameter - Max. 21 mm Material - Self-extinguishing UL 94 V-O POWER SUPPLY Power Supply Voltage - +5 (±1%)VDC Power Consumption - =10 kOhm Accuracy - <=2 .0% ( T=25°C VC=±15V) Linearity - <=2 .0% ( T=25°C) Hi Pot Test 3.0 kV/Min CERTIFICATIONS Approvals - RoHS
