Digital dynamometer FS 2-20

compact

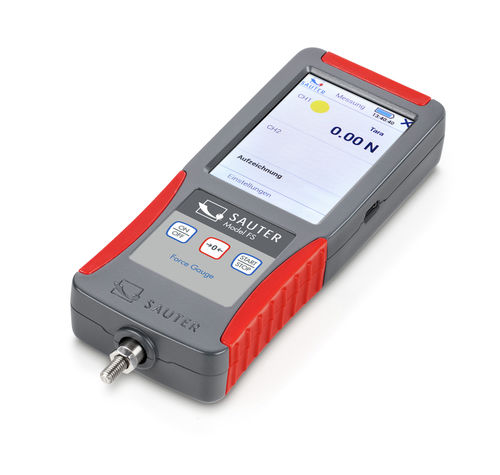

Use with integrated load cell The SAUTER FS premium force gauge has an load measuring cell for tensile and compressive force applications. Either mobile for rapid testing or stationary integrated into a test stand or production line, the multifunction display allows all the values recorded to be read off at a glance in real time. Via the integrated interface, the data can be sent to a PC or laptop for further processing. Use with external load cells The SAUTER FS premium force gauge is compatible with all SAUTER strain gauge measuring cells, see measuring cells. Up to 4 external measuring cells can be connected simultaneously. If an external measuring channel is used, the internal load cell is deactivated as long as an external load cell is connected. Measurement of forces in different tensile or compression directions possible with only one measuring device Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C Tip: Order the practical system case (systainer® T-LOC) for storing and transporting of accessories, clamps, sensors, etc. at the same time, SAUTER FS TKZ, see accessories 3,5" touchscreen Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4) An internal load cell is possible (is deactivated if an external load cell is connected) Suitable for 4-wire and 6-wire sensors with strain gauges Two-point adjustment with weights or numerical adjustment possible The specific data of an external sensor are stored directly in the connector USB interface for data transfer and power supply as standard Internal device memory (16 GB)
