Platform scale BID 600K-1SM
kgglb

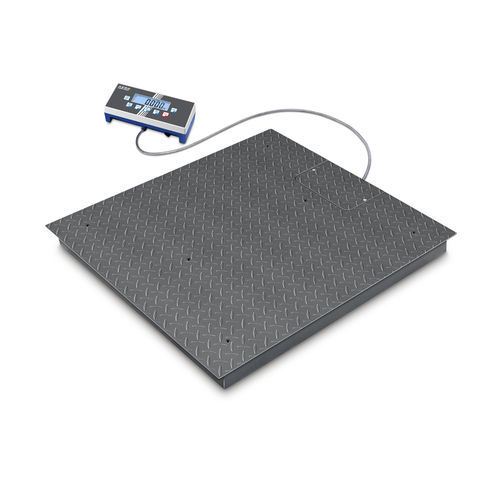

Platform scale - BID 600K-1SM - KERN & SOHN - kg / g / lb
Platform scale - BID 600K-1SM - KERN & SOHN - kg / g / lb
Platform scale - BID 600K-1SM - KERN & SOHN - kg / g / lb - image - 2
Add to favorites
Compare this product


Characteristics

Type
platform
Units of measurement
kg, g, lb, oz
Calibration
external
Display
with LCD display
Communication
RS-232, USB, WiFi, Bluetooth, Ethernet
Material
steel, plastic
Protection level
IP67, IP65
Applications
industrial
Configuration
compact
Weight range

600 kg
(1,322.8 lb)

Weighing plate length

1,000 mm
(39.4 in)

Weighing plate width

1,000 mm
(39.4 in)

Repeatability

0.2 kg
(0.44 lb)

Settling time

2 s

Operating temperature

Min.: -10 °C
(14 °F)

Max.: 40 °C
(104 °F)

Width

1,200 mm
(47.24 in)

Depth

1,500 mm
(59 in)

Height

108 mm
(4.3 in)

Weight

70 kg
(154.32 lb)

Description

Multi-range balance, with increasing load it switches automatically to the next largest weighing range [Max] and readout [d] and when the load is fully removed, the balance switches back to the lower range BID 1T-4EM: Compact special size, especially for weighing europallets Display device: Plastic, protected against dust and water splashes . for details see KERN KIB-TM Weighing bridge out of anti-slip corrugated steel, 4 load cells, alloy steel, silicone-coated, IP67 Easy levelling of the weighing bridge as well as access to the junction box from above Totalising of weights and piece counts Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol.
