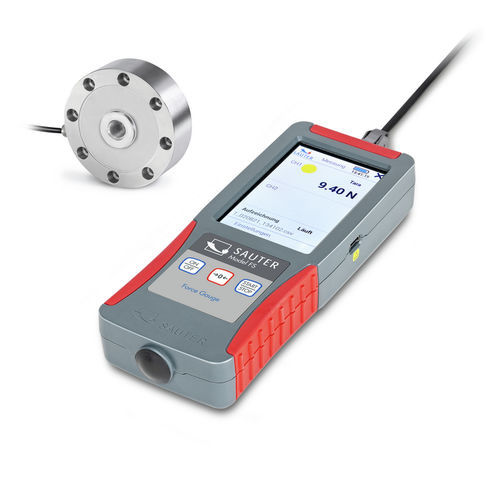

Digital dynamometer FS 2-5KRY1

with graphic displaytension/compressionfor clamping force measurement

Ready-assembled set consisting of premium force gauge FS 2 and load cell CR 500-1Y1 for tensile and compressive force measurements Premium force-measuring device FS 2 - Measurement of forces in different tensile or compression directions possible with only one measuring device - 3,5" touchscreen - Standard version with 2 measuring channels for external force sensors (subsequently expandable from 2 to 4) - The specific data of an external sensor are stored directly in the connector - Adjustable SI units: kg, N, kN, mN, MN, Nm, kNm, mNm - Track function for continuous measurement display - Peak value measurement - Tolerance function - Internal device memory (16 GB) - USB interface for data transfer and power supply as standard - Two-point adjustment with weights or numerical adjustment possible - Supplied in a high-quality and robust system case (systainer® T-LOC) including plug-in power supply and USB cable type C - Loadcell made of steel alloy CR 500-1Y1 - Accuracy class in accordance with OIML C1 - High precision (comprehensive Error 0,05% F.S.) - Nominal sensitivity: 2 mV/V - Protection against dust and water splashes IP68 (in accordance with EN 60529), hermetically encapsulated - Area of application: for tensile and compressive force measurement
