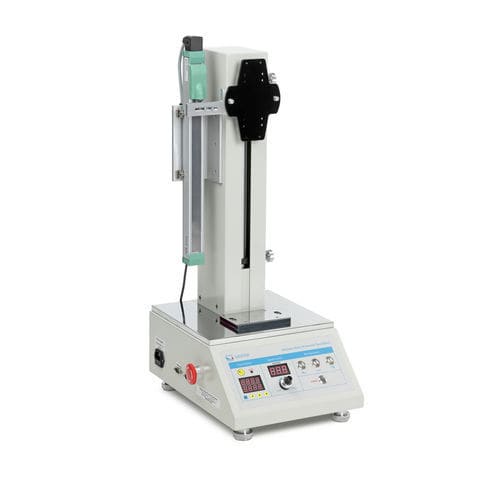

Electric test station TVO 500N500S-LD
pressuretensileautomatic

Electric test station - TVO 500N500S-LD - KERN & SOHN - pressure / tensile / automatic
Electric test station - TVO 500N500S-LD - KERN & SOHN - pressure / tensile / automatic
Electric test station - TVO 500N500S-LD - KERN & SOHN - pressure / tensile / automatic - image - 2
Add to favorites
Compare this product


Characteristics

Test type
electric, pressure, tensile
Operating mode
automatic, manual
Sector
for laboratories, for the automotive industry, for the optical industry
Technology
electric
Configuration
benchtop

Description

Practical set for force-displacement-measurements in laboratory and industry - Five in one – motorised test stand, length measuring system LD, interface cable, data transfer software AFH LD, interface converter AFH 12 and mounting - With linear potentiometer for length measurement to create force-displacement diagrams on PC, maximum measuring range 300 mm, readability 0,01 mm, measuring accuracy 0.5 % of [Max], USB-A cable 1,5 m, high data acquisition speed - Motorised test stand for tension/compression force measurements - Stepper motor for greatest ease of use - for constant speed from the smallest to the maximum load - allows testing at minimum speed and full load - for higher positioning accuracy. Precise starting and stopping, without overrun, even at high speeds - precise adjustment of the displacement speed using the information shown on the display - Automatic or manual operation mode - Premium operating panel: - Digital speed display - Digital repeat function display - Control of the test stand using PC software SAUTER AFH - Table-top design for comfortable operation - Robust construction - Fixation of SAUTER force measuring devices up to 500 N possible, only in combination with TVO-A01 (see accessories)
